factory customized Cosmetic Viscosity Filling Machine - Swirl Cream Filling Machine – Eugeng Detail:

Model EGSF-01A swirl 3d filing machine is an automatic hot filling machine designed for the production of liquid foundation and toner gel


swirl filling machine 1


swirl filling machine 3


swirl filling machine 2


swirl filling machine 4


swirl filling machine 8

Foundation


swirl filling machine 9

Toner gel

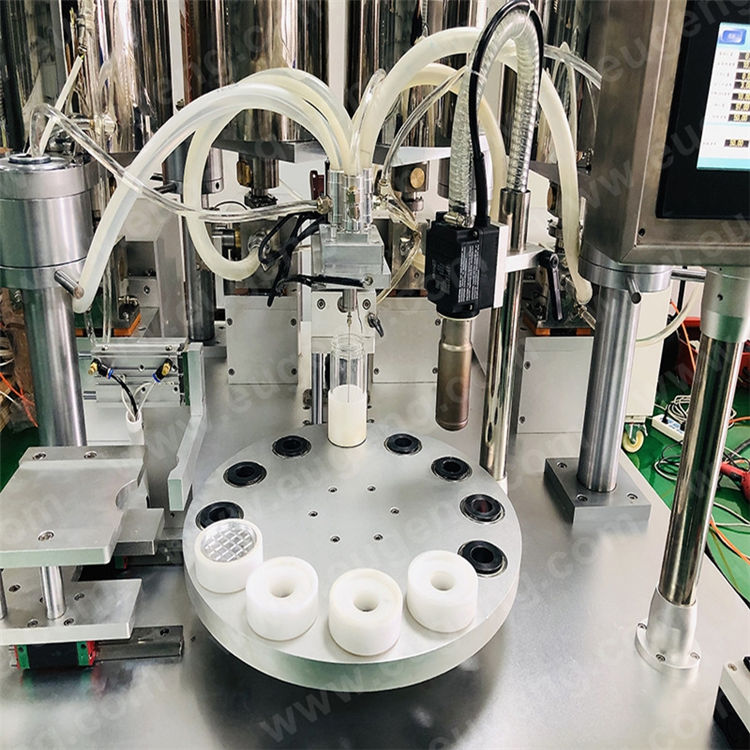

Indexing turn table with 12 pucks, 3 working station

4set of 10 L heating tank with mixer

Operator loading pan/ bottles into pucks by hand

Automatic pre-heating for godet

Air temp is adjustable

Filling with swirl filling ,swirl speed is adjustable filling with servo motor , filling volume and speed is adjustable from touch screen

Filling nozzle moving up speed also is adjustable

When 3D filling , nozzle can move on X and Y direction

Prevent dripping suck volume can be adjustable

Automatic discharge

Swirl 3d filling machine Capacity

12pcs/min for pan

4 bottles for 3D filling

Swirl 3d filling machine Mold

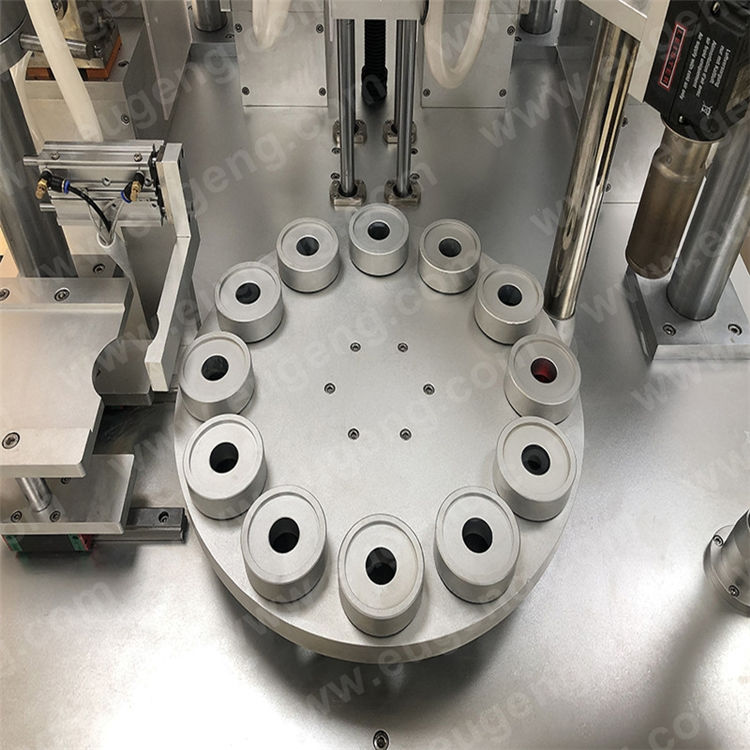

Pucks for pan or bottles

Model  EGSF-01A
Production type Rotary type
Output capacity/hr 720pcs
Control type Cam&air
 No. Of nozzle 1
 No. of working station 12
Vessel volume 10L/set
Display PLC
No. of operator 0
Power consumption  12kw
 Dimension 1.2*1.5*1.6m
 Weight  500kgs
Air input 4-6kgf
Option pucks

swirl filling machine 1

All filling pipe with water heating

swirl filling machine 2

3D filling with pucks for bottles

swirl filling machine 3

Hot swirl filling for godet /pan

swirl filling machine 4

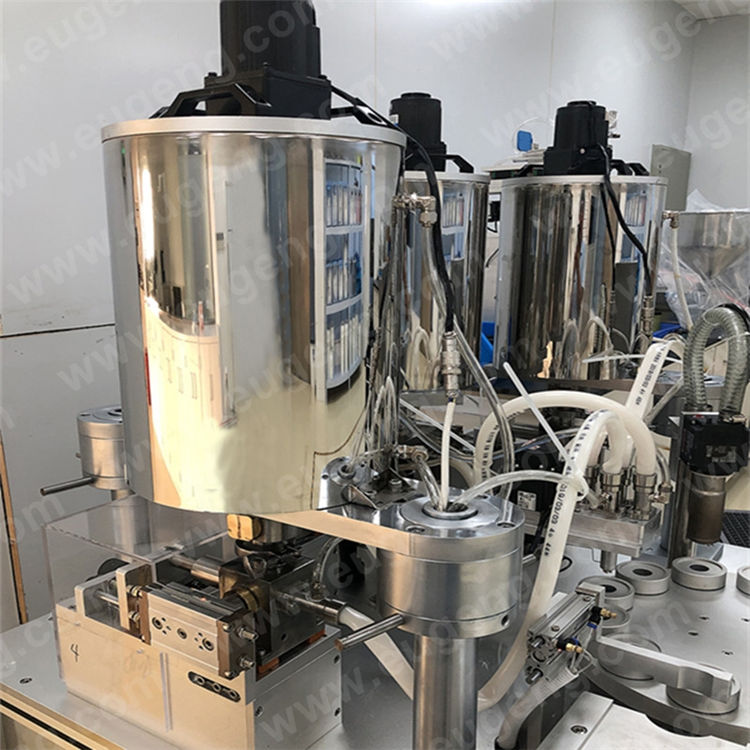

Heating tank with mixer

swirl filling machine 5

Cycling water for heating system

swirl filling machine 6

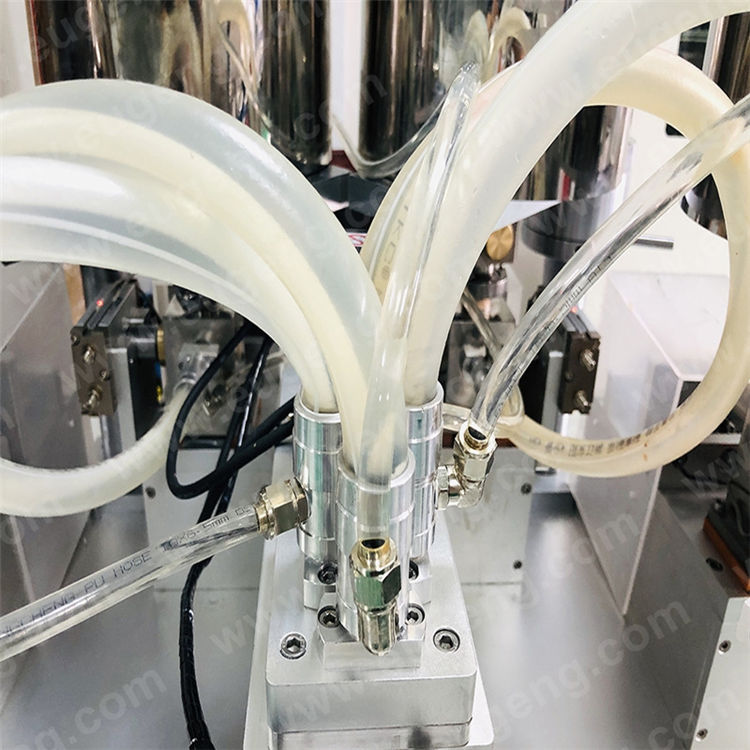

Filling nozzle -max 4 colors

swirl filling machine 7

Filling nozzle fast change over
