Professional China Cosmetic Two Way Cake Press Machine - EGCP-08A Auto Powder Pressing Machine – Eugeng

Model EGCP-08A is a full automatic cosmetic pressed powder machine designed for the production of two way cake,compacts,eye shadow and so on.

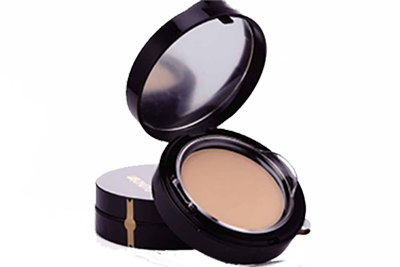

Compacts powder

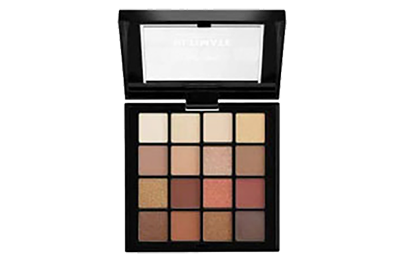

Eyeshadow

Mold(options)

Jig for different size godet/pan

Pressing head/log plate

Capacity

18godets/min for powder

(One cavity with 1 godet, 58mm pan )

Feature

Servo motor ram press unit and digital pressure con- trol unit,pressure and torques can be adjusted,

Main pressing by down side servo motor pressing , which can pressing multi cavities at same time Servo motor pressing :Max pressure is 2500kgf Powder collecting barrel for recycling

Automatic loading godet,feeding powder,wind- ing,and cleaning products

Powder filling volume can be adjusted from touch screen

Auto Powder Pressing Machine Youtube video link

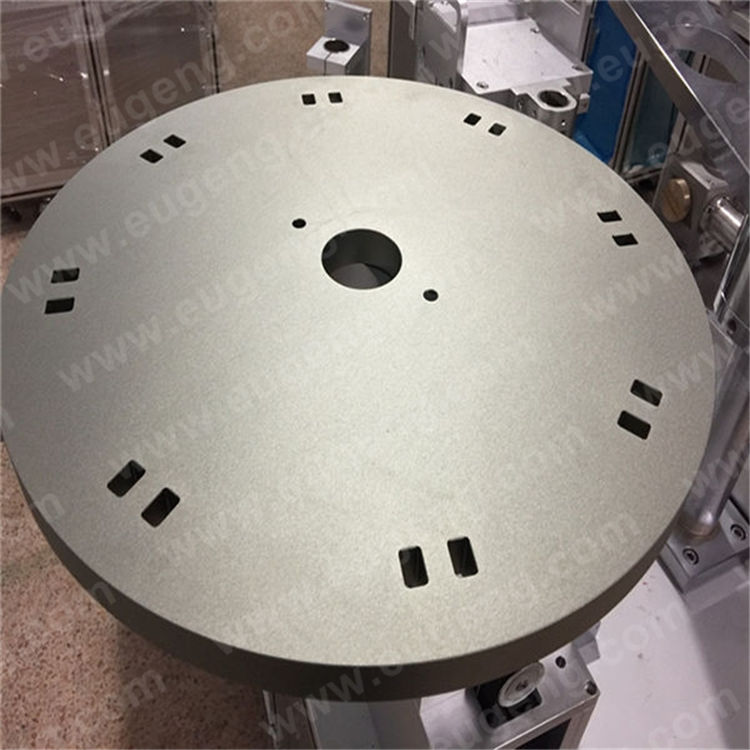

The pressure is from back side And there is two turn table , down table can be moving up and down to control the powder filling volume.

It can pressing multi cavities at same time.

Automatic feeding powder and Automatic supply powder

Automatic discharge with cleaning

Feeding godet conveyor, size is adjustable

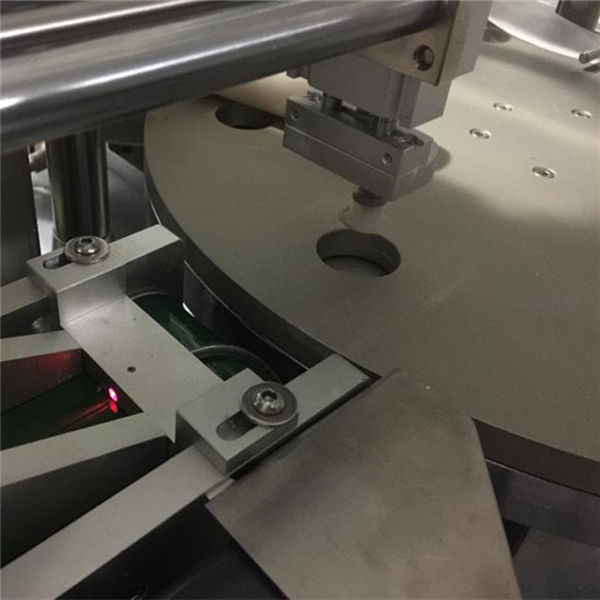

Automatic picking up godet and loading

Pressing godet down to bottom

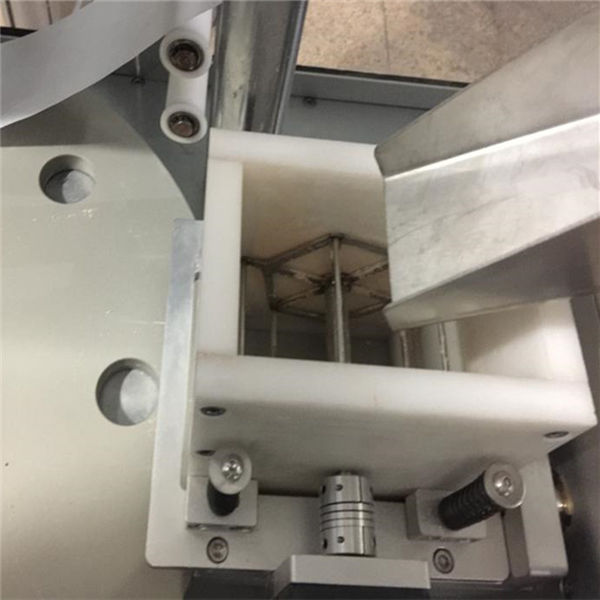

Feeding powder

Servo motor pressing

Automatic rolling fabric

Automatic discharge and with cleaning

Collection table

Vacuum for dust collection

Standard wooden case packing
